INTRODUCING

Sheeran Looper +

STREET TO STAGE

INTRODUCING

THE LOOPER +

Ed’s journey performing for people all over the world has firmly cemented the craft of looping as an artform. We refined all of Ed’s favorite looping tools and packed them into the best grab-and-go looper we could possibly imagine.

Elevate your game with the ultimate dual-track looper pedal designed by Ed Sheeran and his production team.

Featuring intuitive looper modes, premium die-cast aluminium pedals, full color display, LED loop ring, microphone and instrument inputs, 3 hours of internal loop storage, plus over 6 hours of battery life and more!

LOOPER +

OVERVIEW

DESIGNED
WITH ED

Over the past decade Ed Sheeran has paved the way for looping artists all over the world, demonstrating what’s possible with the right set of looping tools. For the very first time ever Ed’s standalone looper pedals are now available for creators and musicians everywhere to explore a new world of musical possibilities.

TWO STEPS AHEAD

Looper + features 2 premium die-cast aluminium pedals forged with the same precision and materials found on Ed’s stadium stage looper.

LOOP ANYWHERE. ANYTIME.

Looper + gives you all the tools Ed uses to perform on-the-go. It can be powered for over 6 hours from a single set of four AA batteries - perfect for gigging and street performance.

SIMPLY POWERFUL

Looper + features 4 versatile looper modes and a custom DSP powered by HeadRush® with professional 32-bit audio quality.

PERFORMANCE

YOU NEED ME.
I DON’T NEED YOU.

PLUG AND PLAY

Looper + provides straight-forward purist looping out-the-box. Just connect your microphone and instrument, set your levels, and start looping! Press the pedals to record, overdub, play or stop loops, and hold the pedals to undo/redo or clear them. Push and hold the navigation wheel button to navigate the main menu and change settings or press to activate a custom assigned function of your choice.

TWO PEDALS, INFINITE POSSIBILITIES…

Looper + features the exact same premium die-cast pedals found on Ed’s stadium stage looper. These pedals have been precision-engineered with optimal dimensions and spring pressure to be consistently easy-to-operate, helping you focus purely on your looping performance.

These ultra-durable pedals control the track record, overdub, playback and stop status of your loops, and feature hold functionality to undo/redo and clear your loops with ease. You can also connect an optional external single or dual footswitch and/or MIDI controller to Looper + for assignable feature control such as soloing and muting tracks, reverse and 1/2 speed playback, as well as fading loops in and out.

ON THE GO LOOPING

Take your looping skills on the road! Looper + can be powered for over 6 hours from a single set of four AA batteries - perfect for gigging and street performance. Alternatively, you can connect Looper + to a standard 9V pedalboard power supply and integrate it into your pedalboard. You can even power Looper + directly from the USB port for easy loop transfer with a Mac or PC.

SAVE AND SHARE

Capture, save and share inspiration when it happens. Looper + lets you store up to 128 loops with over 3 hours of total onboard storage time. When connected to a Mac or PC, the Looper + appears as a plug-and-play USB storage device, making it easy to transfer loops via drag-and-drop without having to install any extra software. Sharing your loops with the world has never been easier.

RECORD AND STREAM VIA USB

Looper + makes it easy to reach a wider audience with your creations and performances. When connected to a Mac, or PC, Looper + simply functions as a 2-in / 2-out USB audio interface, making it easy to record using your favorite DAW, or to set up live streams and play to the world.

FULL EXTERNAL CONTROL

Ready for more? Connect a single or dual footswitch to Looper +’s EXT FS input to get direct access to up to 2 more customizable functions, or connect a MIDI controller via the 1/8” MIDI input (adapter included) to access all of Looper +’s functions via MIDI messages.

4

LOOPER + MODES

4 Looper Modes for Intuitive Looping Straight Out-of-the-Box

Single

1 track with limitless layers for creating simple and powerful loops like Ed did when building his live show career

Multi

2 tracks with a global loop length for building tracks, just like Ed’s stadium stage looper workflow

Sync

2 tracks with different lengths that automatically stay in sync with each other

Song

2 tracks with the same or different lengths that function as independent song sections (ex. verse, chorus, etc.)

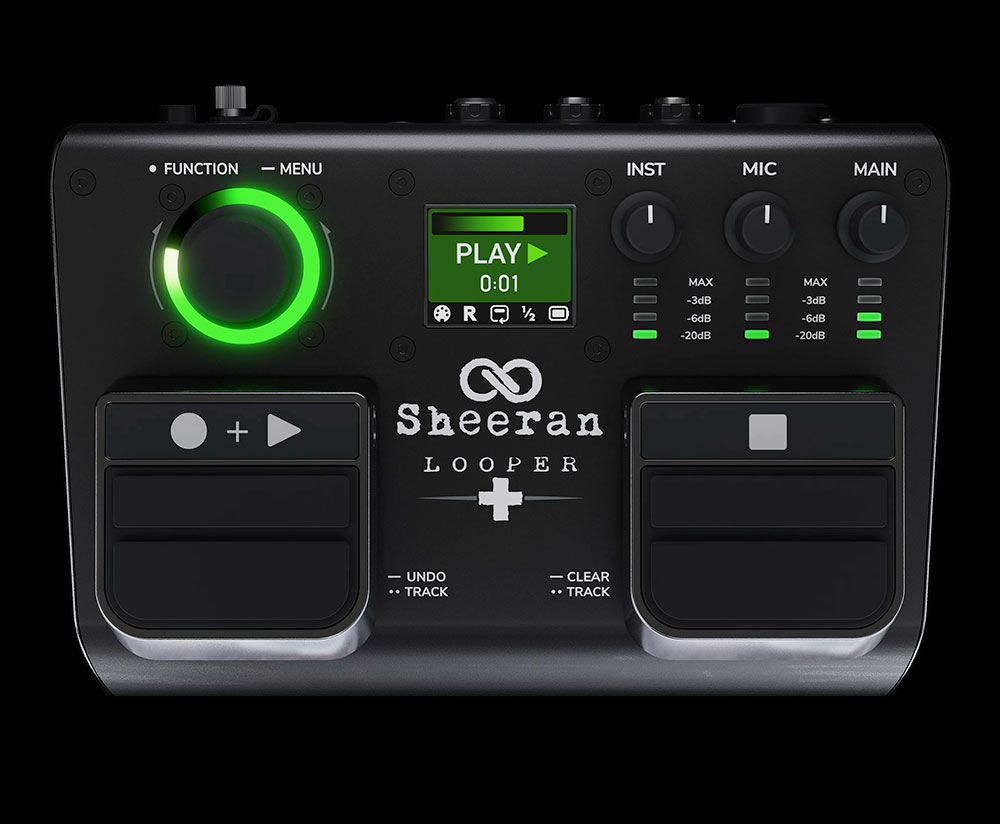

360° NAVIGATION WHEEL

The 360-degree navigation wheel offers fast menu access and the surrounding RGB LED loop status ring (as seen on Ed’s stadium-stage looper) provides hyper-visual performance feedback.

LCD DISPLAY SCREEN

Looper+ features a 1.8" full-color TFT LCD display that provides heads-up performance feedback on your loop's status, as well as easy menu navigation for customizing your settings.

LED LEVEL METERS

The 3 LED meters provide real-time input and output level feedback, making it quick and easy to set up for your next performance.

FEEL
CONNECTED

Looper + features a mono combo XLR + 1/4-inch input for connecting a standard dynamic microphone for vocals, a stereo pair of 1/4” inputs for connecting an instrument like guitar or keyboard, a stereo pair of 1/4” assignable outputs, a 1/8” MIDI input (with included 5-pin adaptor) for external MIDI sync and control, 1/4” external single or dual footswitch input, and a USB port for transferring loops and MIDI sync to a Mac/PC. You can also connect an optional 9V external power adapter or connect Looper + to a Mac/PC via USB for power.

1
2
3
4
5
6
1
Combo XLR & 1/4” (6.35mm) Microphone Input
2
1/4” (6.35mm) Stereo Instrument Inputs
3
1/4” (6.35mm) Main Outputs
4
1/4” (6.35mm) Dual Footswitch Control Input
5
1/8” (3.35mm) MIDI Input (5-Pin Adapter Included)
6
USB Connection for MIDI and Loop File Transfer

TECHNICAL
SPECIFICATIONS

Top Panel
Display:
1.8" color LCD display
Housing:
Matte black powder coated steel chassis
Pedals:
(2) die-cast aluminum pedals with titanium grey satin finish
Controls:
360° navigation wheel with push-to-enter and hold function with RGB LED ring indicator
Instrument input gain control knob with real-time LED input level meter
Microphone input gain control knob with real-time LED input level meter
Main volume control knob with real-time LED output level meter
Rear Panel
I/O:
Combo XLR+1/4” (6.35 mm) balanced input (mono)
(2) 1/4” (6.35 mm) balanced inputs (stereo pair)
1/4" (6.35 mm) single or dual footswitch input (TS or TRS)
(2) 1/4” (6.35 mm) balanced outputs (stereo pair)
1/8” (3.5 mm) MIDI Input (5-Pin to 1/8” adapter included)
USB Type-B port
Power adapter input with power switch and cable restraint
Power Specifications
DC Power Input:
9V DC, 500mA, Center-Negative, 2.1mm Barrel
USB Power Input:
Yes
Battery Power Type:
4 x AA (Alkaline) (Included)
Est. Battery Life:
Over 6 Hours (may vary based on conditions of use/battery brand)
Looping Specifications
Looping Modes:
4 (Single, Multi, Song, Sync)
Looping Functions:
Record, Overdub, Play, Stop, Undo/Redo, Clear Track, Clear All, Reverse, 1/2 Speed, Fade In/Out, Solo, Mute
Max # of Looper Tracks:
2
Max Loop Length:
1.5 Hours
Max Overdub Layers Per Loop:
Unlimited Layers
Max Overdub Time Per Loop:
30 Minutes
Loop File Storage Format:
.WAV (32-Bit PCM, 44.1 kHz)
Max # of Stored Loops:
128
Onboard Storage Time:
Over 3 Hours
Onboard Storage Space:
~4.1GB
Other Features and Functionality
External Pedal Assignment:
Yes (for Single or Dual Footswitch)
USB Transfer Mode:
Yes
USB Audio Interface Mode:
Yes
Control from Externeral MIDI Devices:
Yes
MIDI Clock Sync:
Receive
Audio Routing Customization:
Stereo, Mono or Split (Loop/Dry)
Audio Processing Specifications
Processor Type:
Custom single-core HeadRush(R) DSP
System Audio Bit Rate:
32-Bit PCM
System Audio Sample Depth:
44.1 kHz
A/D D/A Conversion:
24-Bit
USB Recording Specifications
Bit Rate:
24-Bit
Available Sample Depths:
44.1 kHz
Input Channels:
2
Output Channels:
2
USB Loop Import Specifications
Supported File Types:
Stereo .WAV
Supported Bit Rates:
16-bit PCM, 24-bit PCM, 32-bit PCM, or 32-Bit Float
Supported Sample Rates:
44.1 kHz
Dimensions and Weight
Pedal Dimensions (WXDXH):
8.52” x 6.24” x 3” (21.64 x 15.85 x 7.62 cm)
Pedal Weight:
3.75 lbs. (1.7 kg)
Box Dimensions (WXDXH):
12” x 9.24” x 6.12” (30.48 x 23.47 x 15.55 cm)
Box Weight:
5.51 lbs. (2.5 kg)
